			Trepanning Machines
	PW Seires PW300-4DS PW600-4D Custom Machine FW Series FW-1000 FW-1300 FW-2010 FW-2013 FW-2016 FW-2510 FW-2513 FW-2516 FW-3010 FW-3013 FW-3016 BTA Series BTA-2000 BTA-2500 BTA-3000 BTA-2000S BTA-3000S BTA-4000S BTA-5000S BTA-6000S TPA Series TPA-600 TPA-1200 Special Project BTA-500-2D FEB-5050
			Specifications

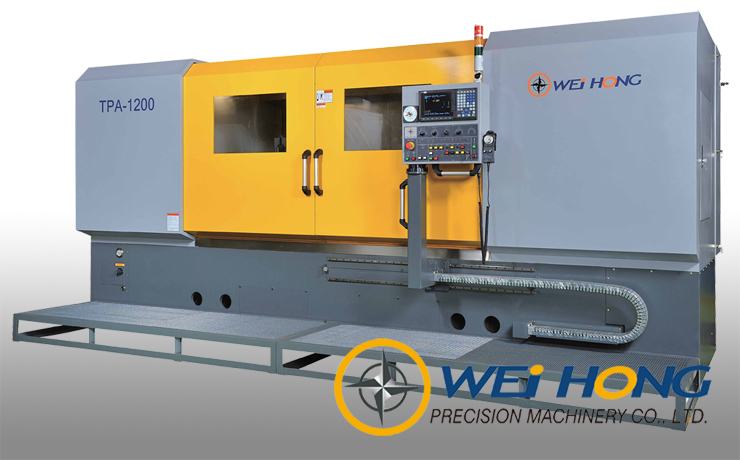

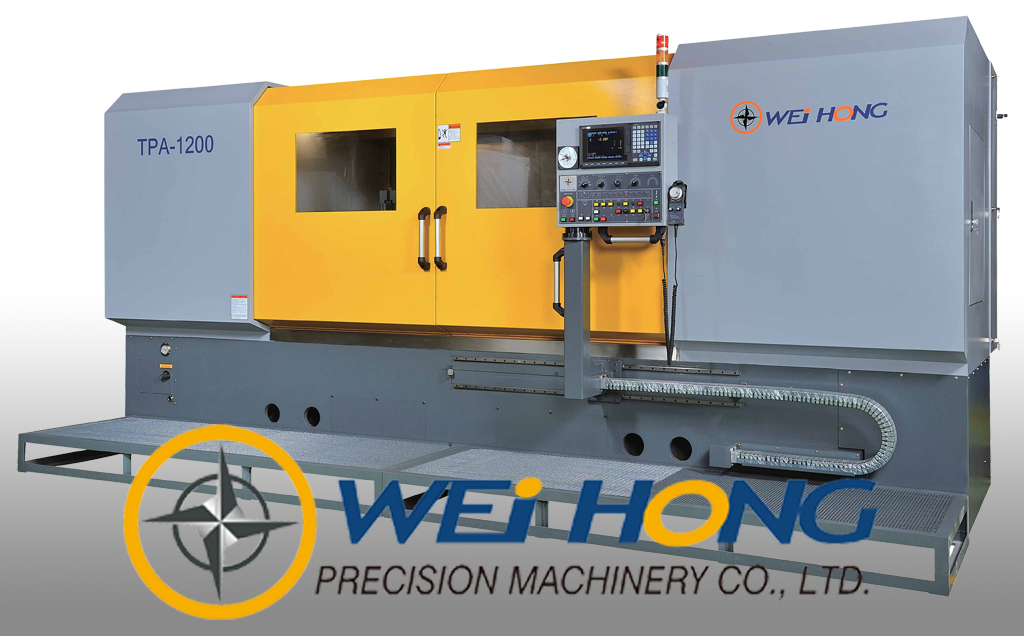

			Model Drilling capacity of diameter Drilling capacity of depth Hydraulic 3-jaw chuck Controller Spindle motor Spindle speed Spindle taper Number of spindles Z-axis motor Z-axis travel	TPA-1200 Core-stay: Ø80~300mm Blind hole: Ø150mm Unilateral drilling: 600mm Bilateral drilling: 1200mm Standard: 21" (Optional: 24") MITSUBISHI M64ASM AC servo 37.5 kw 10~850rpm BT-50 1 AC servo 9.0 kw 2400mm
			* The selling right of this machine in North, South America and Europe is carried by Mollart Engineering Limited.

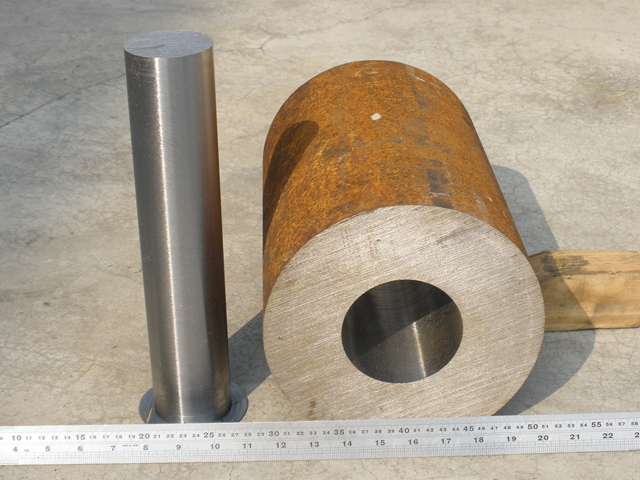

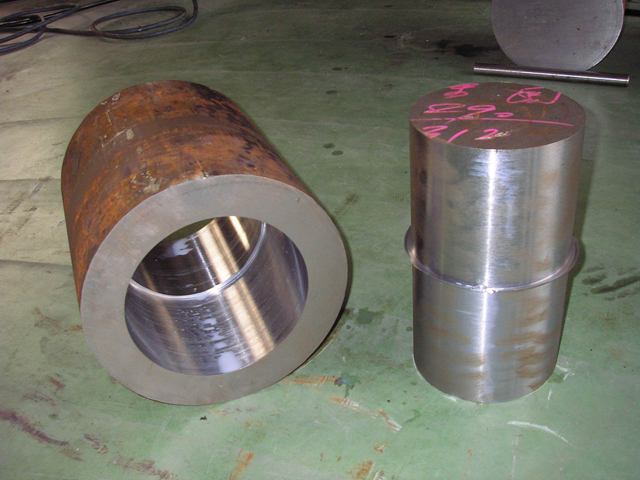

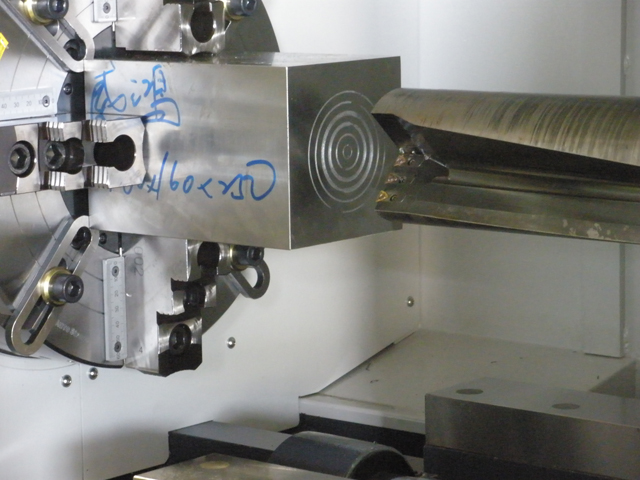

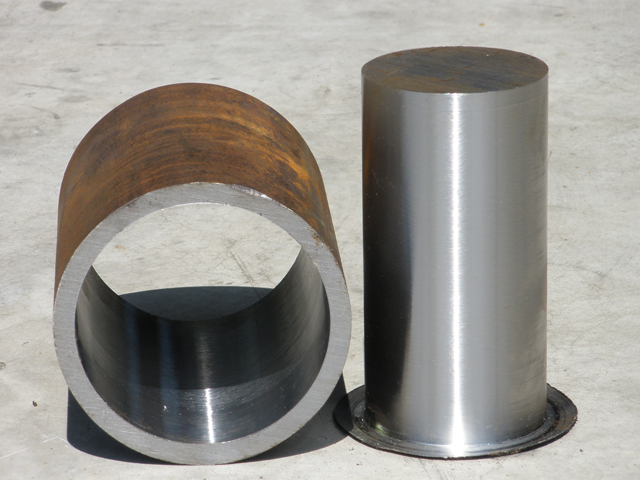

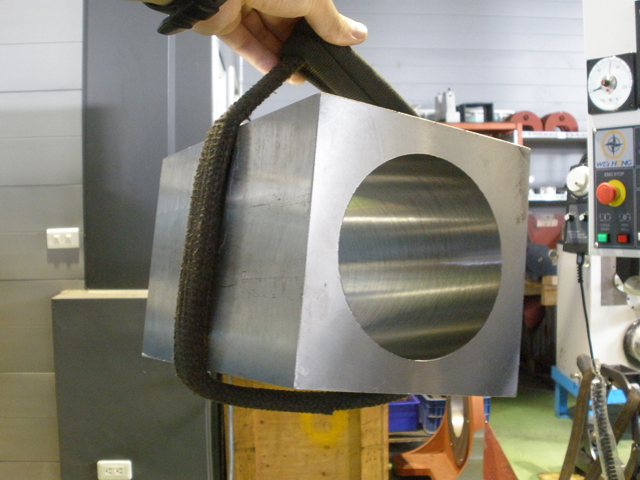

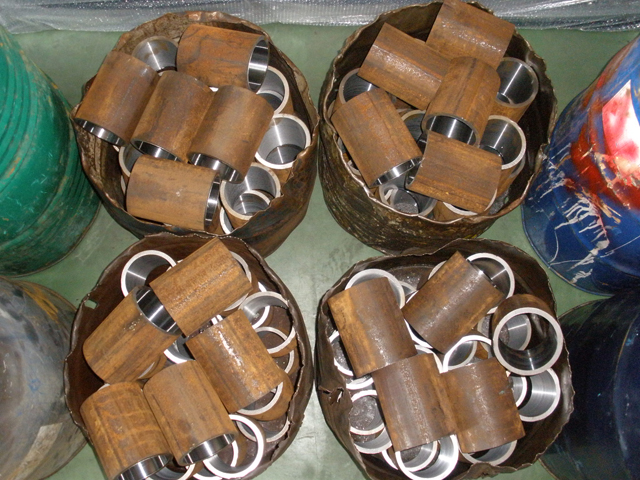

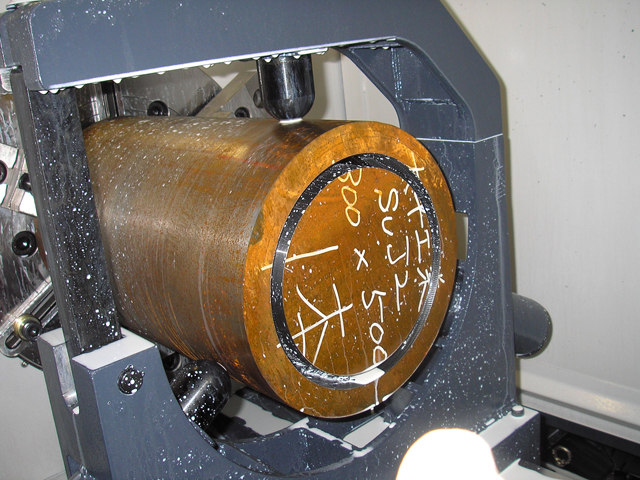

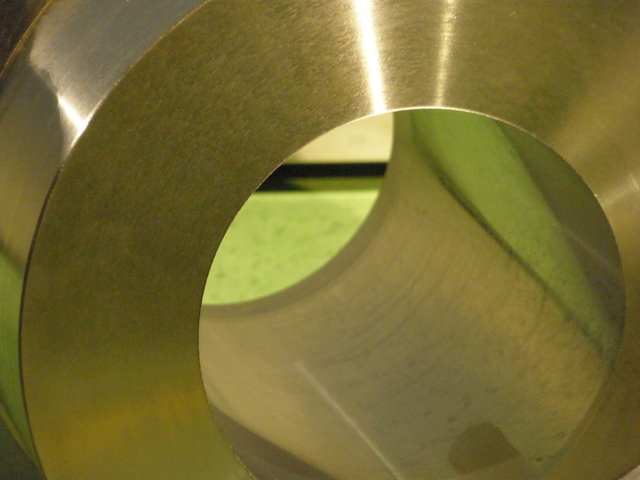

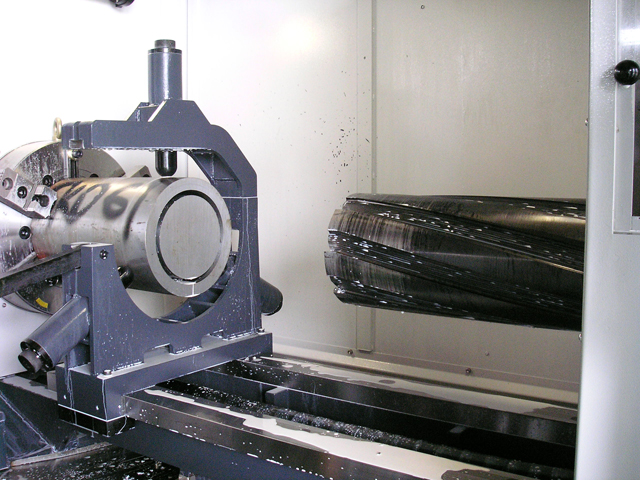

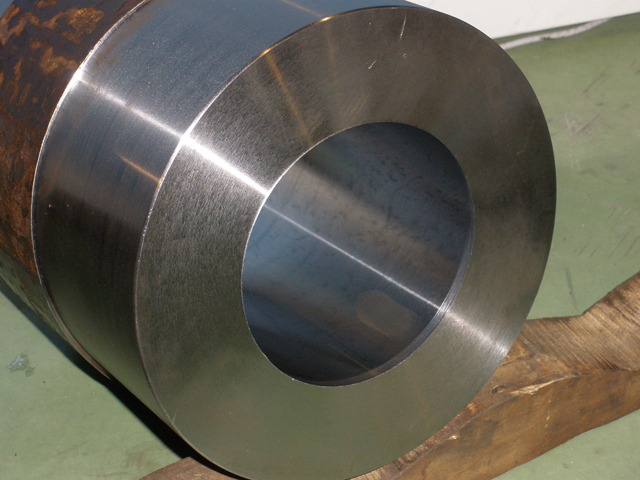

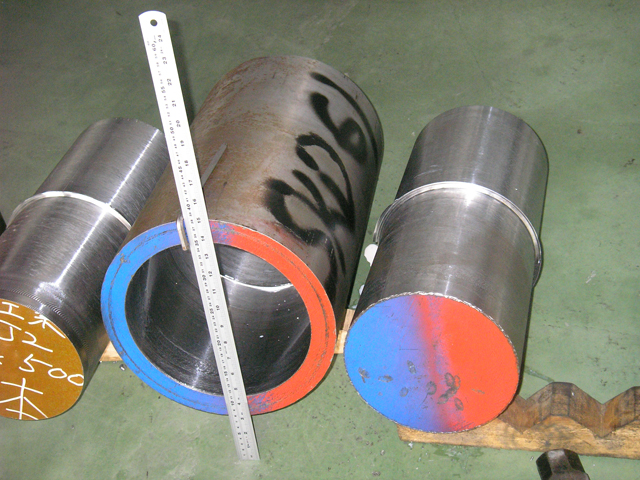

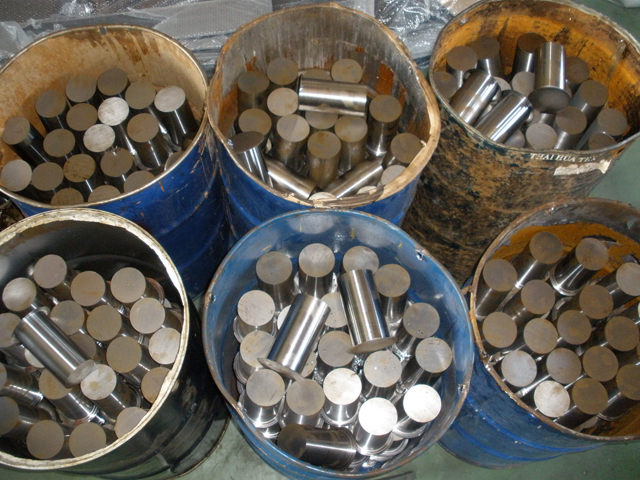

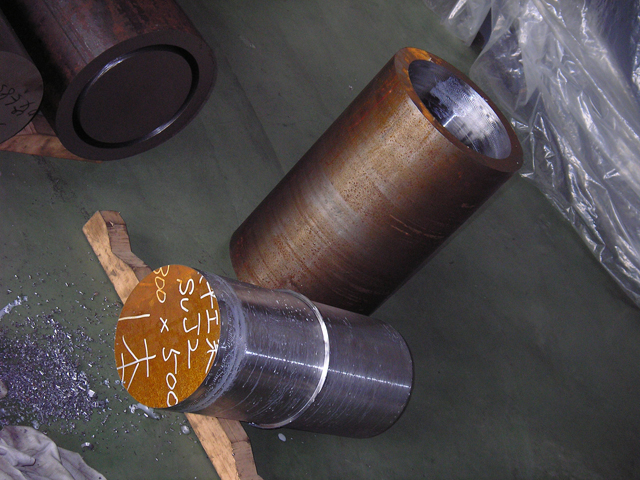

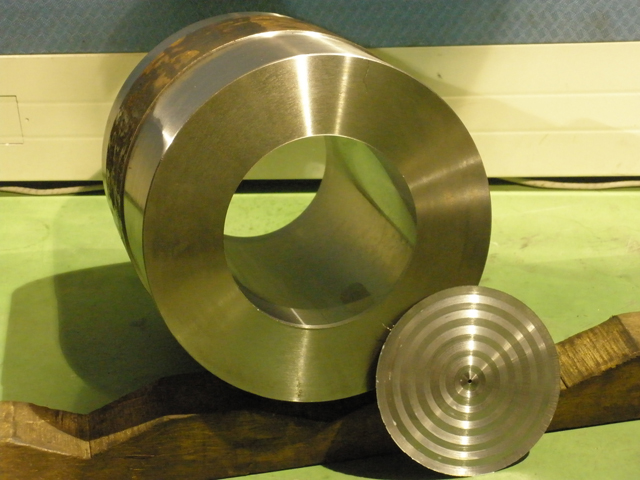

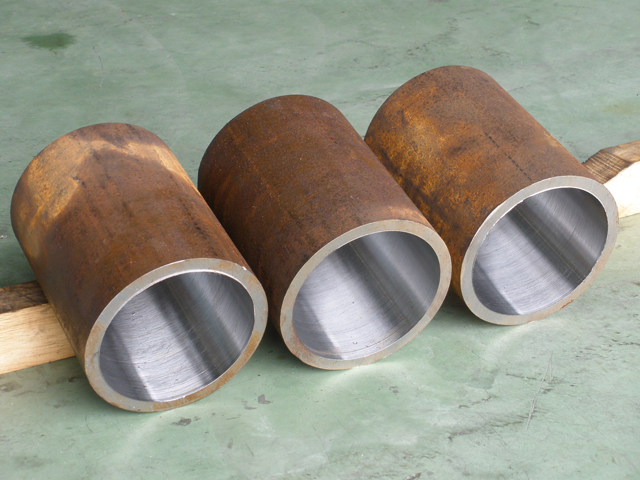

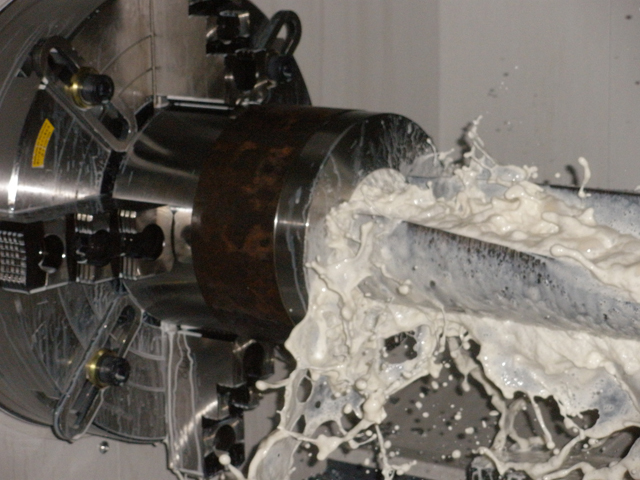

	Work Piece				Machining Video
